Call Tracking Metrics Texting Connector v2.0

1. Feature Overview

The CallTrackingMetrics texting connector lets you send texts to leads directly from your LeadSquared account. In addition, you’ll be able to –

• Set up automated SMS campaigns with notifications and reminders.
• Track incoming and outgoing SMS logs as activities.
• Eliminate the need to switch between multiple applications to manage SMS activities.
• Analyze the performance of your all campaigns sent through LeadSquared.

For the CallTrackingMetrics telephony integration, see LeadSquared CallTrackingMetrics Connector.

2. Prerequisites

• You must be an administrator user of your Leadsquared account.
• Your account plan must support SMS integration.
• You must have an active account with CallTrackingMetrics.

3. How it Works

Set up the connector by providing your CTM account details. Once it’s set up, create and configure the SMS templates you’ll be using to message your leads. After these templates are configured, send SMSes to your leads.

4. Install the Connector

To install the CTM connector on your account –

1. From the main menu, navigate to Apps>Apps Marketplace.
2. Search for CallTrackingMetric, and click Install.
   • Alternatively, you can find the connector on the left panel, under SMS.
3. Then, click Configure.
4. On the Configure CallTrackingMetric  pop-up, no further action is required on this page. To configure the connector, navigate to Apps>Configure CallTrackingMetric.

5. Configure the Connector

Once the connector is installed, navigate to Apps>Configure CallTrackingMetric, and provide the following details –

5.1 Authentication

Enter your CallTrackingMetric account credentials –

• Account Number – Your CTM account number.
• Access Token – Your CTM account’s access key.

Once you’re done, click Save & Next.

5.2 Activity Creation

When SMSes are sent to your lead, an activity is posted automatically against that lead. Here, configure the activity creation method for the SMS activity.

• Async API – This is the recommended method. If you’ve selected this method, enter your LeadSquared account’s Async API URL and API Key. To obtain both these values, navigate to My Profile>Settings>API and Webhooks>Async API.
• Sync API – This method is selected by default. To post limited SMS activities against your lead, select Sync API.

5.3 Sender Management

To add your CTM account’s Sender IDs, click Add New, and on the Add Sender ID pop-up, enter the following details –

• Sender ID – Enter your CTM phone number from which you’ll send messages to your leads. To know how to obtain a number, refer to CTM Phone Numbers.
• Name – A name to identify the Sender ID (e.g., Promotional, Transactional, etc.). This is primarily for internal reference. This is optional.
• Sender Distribution – Select the users to whom the Sender ID will be assigned –
  • Based on Role – Select the LeadSquared user roles to whom you want to assign the Sender ID.
    • Specify Roles – From the dropdown, select the user roles (e.g., Administrator, Marketing User, etc.) to whom you want to assign the Sender ID.
  • Advanced (User Level) – Select a boolean user field that’s configured in your account. If the selected user field contains the value “True” for any user, the Sender ID will be assigned to them.
• Associated Users – If the Sender ID you entered is linked to a user, the system automatically populates this field with the user’s name. If the Sender ID is not linked to any user, you can select the user from the dropdown, and associate the ID with them.
• Advanced Sender ID Distribution options (User Field Level) – Select the user field where you want to store the Sender ID. You can only select number or string type user fields.

To add multiple Sender IDs, repeat the steps mentioned above. Once you’re done, click Save, and click Save & Next.

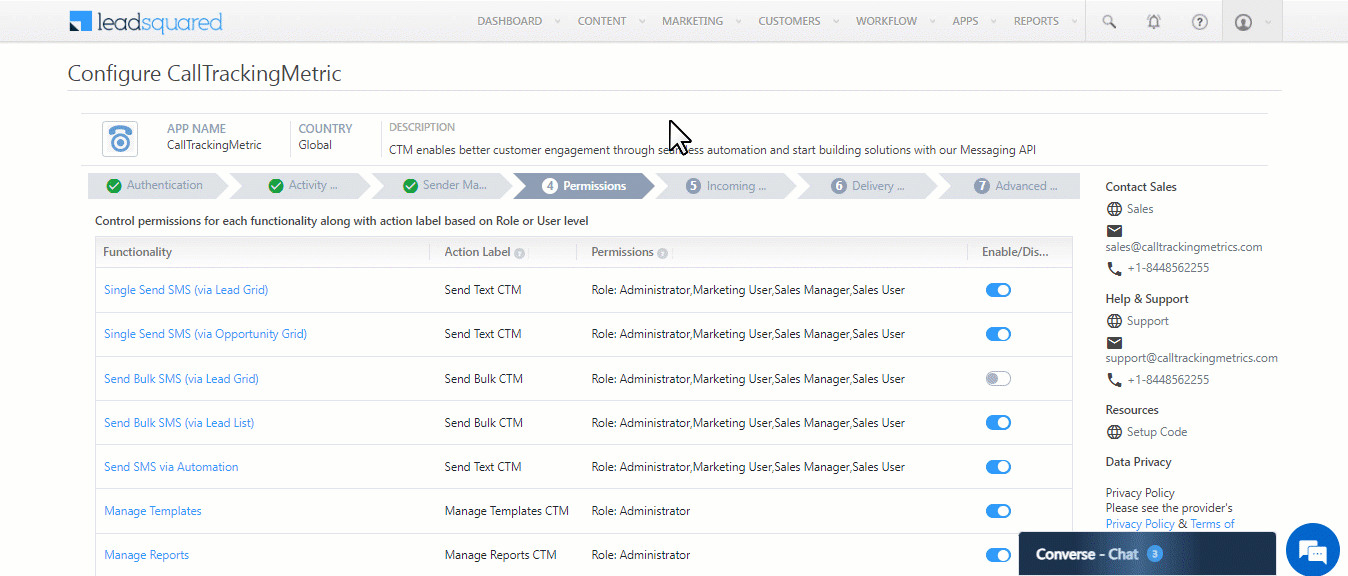

5.4 Permissions

Grant users permissions to perform the following actions:

• Send single and bulk SMS
• Manage reports (viewing reports)
• Send MMS
• Converse

These actions will be configured and available on the following pages –

• Manage Leads page grid
• Manage Opportunities page grid
• Lead List
• Automation Page

You can also configure permission you want to grant users for managing templates and reports. This action will be configured on the following pages –

• Manage Templates (the CTM template creation screen)
• Manage Reports (the CTM SMS Reports screen)

1. Under Functionality, click on the page for which you want to configure the permissions.
2. On the Send SMS pop-up, provide the following details –
   • Action Label – Enter the display name of the SMS action (e.g., Send Text – CTM, Send Bulk Text – CTM, etc.). The limit on the number of characters you can add is 25.
   • Campaign Size – This is applicable only when sending bulk SMSes. You can send SMSes to up to 200 leads through the Lead Grid, and up to 1,000 bulk SMSes through the Manage Lists page in one go.
   • Permission – Select if you want to enable users to Send SMS based on their user role or based on the values entered in a user boolean field.
     • Based on Role – Select the LeadSquared user roles based on which you want to grant Send SMS permissions.
     • Advanced (User Level) – Select a boolean user field that’s configured in your account. If the selected user field contains the value “True” for any user, they’ll be able to access the Send SMS action.
3. To disable the action for your users on any page, under Enable/Disable, disable the slider. The action cannot be disabled for the Manage Templates and Manage Reports screens.

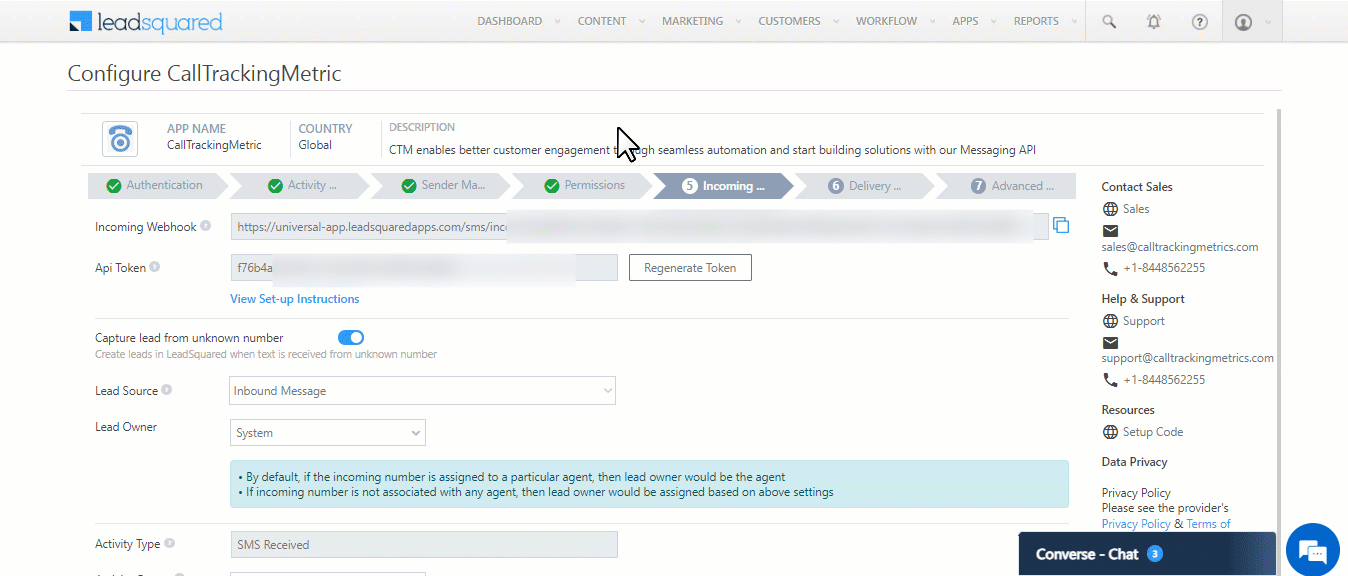

5.5 Incoming Settings

Configure what happens when you receive an incoming message.

• Incoming Webhook – Copy this webhook, and configure it in your CTM account.
• API Token – No action is required from you here.
  • Regenerate Token – If your existing webhook URL is compromised, and if third parties get access to it, you can use this option to generate a new token. Once this is done, the existing webhook is no longer useful. You will have to update the webhook in your CTM account.
• Capture lead from unknown number – To capture and create new leads when you receive messages from unknown numbers, enable this slider.
  • Lead Source – From the dropdown, select the lead source that’ll be assigned to the new leads that are created from unknown numbers.
  • Lead Owner – By default, when an incoming message is assigned to any agent, that agent becomes the lead owner. However, if incoming messages are unassigned, you can choose whether you want the leads to be assigned to the system or to a specific user.
• Activity Type – When an inbound message is received, a corresponding SMS Received activity is automatically posted. This activity cannot be renamed.
• Activity Owner – By default, when an SMS Received activity is posted, the agent to whom the message was assigned becomes the activity owner. However, if incoming messages are unassigned, you can choose whether to assign the activity to a specific user or to the lead owner (of the lead associated with the SMS).
• Auto Reply – Configure the connector to perform lead opt-in and opt-out actions based on keywords present in the incoming SMS. For instance, if your lead sends STOP, they’re automatically unsubscribed from the message list, and a message confirmation of the same is sent to them. After this, they’ll receive no more messages from your account.
  • To edit the list of keywords and the auto-reply message content, click .
  • To add a custom reply, click Add Custom Auto Reply. Enter the keywords, choose a Condition, and enter the message content. Once you’re done, click .

Once you’re done, click Save & Next.

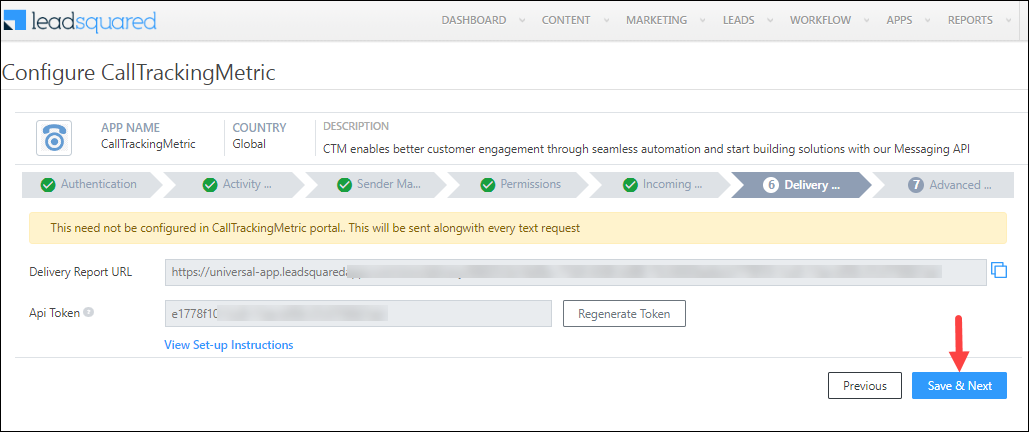

5.6 Delivery Reports

LeadSquared automatically passes this webhook to your CTM account. You don’t have to perform any action with this webhook URL.

• Regenerate Token – If your existing webhook URL is compromised, and if third parties get access to it, you can use this option to generate a new token. Once this is done, the existing webhook is no longer useful. LeadSquared will automatically pass the new webhook to CTM.

5.7 Advanced Settings

Compliance

The SMSes you send to your leads must meet regulatory compliances mandated in the US. You can either choose Opt-out or Opt-in as the compliance type. Once you select the type, from the list of boolean lead fields (e.g., ‘Do Not SMS’) available in your account, select an opt-out/opt-in field.
Leads for whom the value of the Opt-out field is set to ‘True’ will not receive any SMS. Alternatively, leads for whom the value of the Opt-in field is set to ‘True’ will receive SMSes.

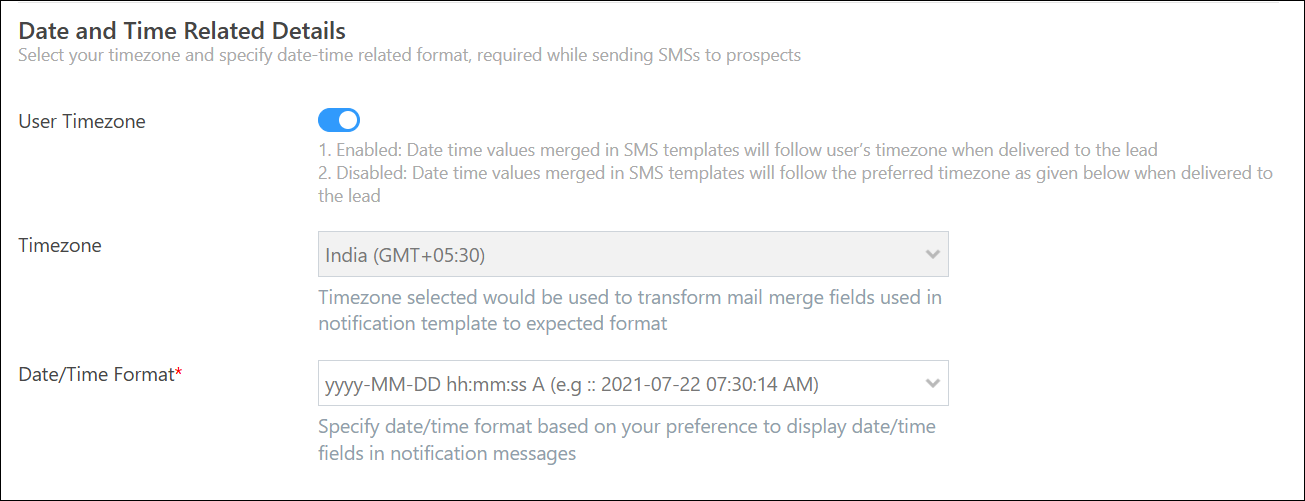

Date and Time Related Details

• User Timezone – The User Timezone setting is enabled by default, and the following behaviours are applied to this setting –
  • Enabled – The logged-in user’s timezone will automatically merge with the date-time values in the SMS templates, and this timezone cannot be updated.
  • Disabled – The Admin can update the timezone to reflect any region across the globe, using the dropdown listed. This will be applied by default to all the date-time values in SMSes sent from the account.
• Date/Time Format – Select the date and time format your LeadSquared account should follow when sending SMSes to leads.

Business Hours

You can define business hours during which SMSes can be sent to your leads. This step is optional.

1. Alongside Business Hours, enable the slider.
2. From the Schedule dropdowns, define the business hours.
3. From the Select Sender IDs dropdown, select the senders to whom this business hour definition will be applied.

Daily SMS Limits

Configure the maximum number of outbound messages that can be sent in a day. These limits won’t be applied to messages sent through SMS campaigns.

Other Details

From the Other Phone Field dropdown, select the default phone field in which the lead’s phone number is stored in your account. Once you’re done, click Save & Close.

6. Manage Templates

After the CTM connector is set up, add SMS templates which you’ll be using to message your leads.

1. Navigate to Apps>Manage Templates. This is the action label name you’ve configured for the Manage Templates screen (e.g., Manage Templates – CTM, etc.).
2. On the Manage Templates – CTM screen, click Add Template.
3. On the Add/Edit Template pop-up, enter the following details –
   • Category – Select the LeadSquared category type for the SMS template.
     • Lead – Select this if you’re using this template to send messages to leads (e.g., offers, promotions, etc.).
     • Opportunity – Select this if you’re using this template to send messages to opportunities (e.g., offers, promotions, etc.).
     • Activity – Select this if you’re using this template to send notifications about an activity (e.g., Payments, Document Collections, etc.).
     • Task – Select this if you’re using this template to send notifications about a task (e.g., Appointment Reminders, Follow Ups, etc.).
     • User – Select this if you’re using this template to send messages to users (e.g., Reminders, Company Wide Announcements, etc.).
   • Template Name – Provide a name for the template.
   • Source Availability – Select if the template should be available to send Single SMS, Bulk SMSes and SMS through Automations. You can select all three sources if required. It is mandatory to select at least one source.
   • Content – Enter the content of the message you want to send to your lead here.
     • Add Variable – To add mail merge fields, click Add Variable. Variables in LeadSquared are defined as {{var}} i.e, the variable name is enclosed within two curly brackets. If the approved template contains a mail merge field “{#var#}”, then the LeadSquared mail merge value can only replace “{#var#}”, without changing anything else in the template. For e.g., “Hi {#var#}, hope you’re doing well!” can only be replaced by, “Hi {{var}}, hope you’re doing well!”. We also support Custom Variables. You can use this to mail merge custom variables like the Company Name, website URLs, etc.
4. Once you’re done entering all the details, click Save.

On the Manage Templates screen –

• To edit an existing template, alongside the template, click .
• To delete an existing template, alongside the template, click .
• You can sort and filter existing templates by –
  • Sender ID
  • Last Modified By user
  • Category

7. Send Single SMS

To send a one-to-one SMS to your leads –

1. Navigate to Leads>Manage Leads.
2. Alongside the lead you want to message, hover your cursor over . From the available options, under Messaging, click the messaging action label you’ve configured (e.g., Send Text – CTM, etc.).
3. On the Send Text pop-up –
   • Select the Sender Id through the From dropdown.
   • Under Message Body, either
     • Click Select a Template, and from the list of available templates, select the one you want to use,
       OR
     • Type out the message you want to send to your leads.
   • If there are custom variables available, check if the relevant values are mapped to each variable.
4. Once you’re done, click Send.

Alternatively, you can also send one-to-one SMSes from the Lead Details page. To do this, hover your cursor over the Lead Actions button, and under the Messaging option, click the messaging action label you’ve configured (e.g., Send Text – CTM, etc.).

You can convert the message into an MMS by sending an image or GIF file. To send an MMS, on the Send Text pop-up, click ,  and you can –

• Upload File – Attach a file to the message. The maximum supported file size is 4MB.
• Enter URL – Paste the image or GIF URL.
• From Lead Field – Mailmerge a lead field that contains the image file you want to attach to the message.
• From User Field – Mailmerge a user field that contains the image file you want to attach to the message.

8. Send Bulk SMS

You can send bulk SMSes to your leads from the Manage Leads page and the Manage Lists page.

8.1 Manage Leads Page

1. Navigate to Leads>Manage Leads.
2. Alongside the leads you want to send the SMS to, select the checkboxes..
3. Hover your cursor over the Actions menu. From the available options, under Messaging, click the messaging action label you’ve configured (e.g., Send Bulk Texts – CTM, etc.).
4. On the Send Bulk Text pop-up, enter the following details –
   • Campaign Details
     • Alongside Sending messages to…, check if the correct number field has been selected. You can select multiple number lead fields.
     • From the From dropdown, select the Sender Id.
     • Alongside Campaign Name, provide a relevant name for the SMS campaign.
     • Under Message Body, either
       • Click Select a Template, and from the list of available templates, select the one you want to use. Alternatively, to select a template, click .
         OR
       • Type out the message you want to send to your leads.
     • Once you’re done, click Save & Next.
   • Custom Params
     • If there are custom variables available in the template, check if the relevant values are mapped to each variable.
     • To edit the value for a variable, click .
     • Once you’re done, click Save & Next.
   • Review and Send – On this tab, review if all the SMS details are correct.
5. Once all the details are verified, click Send.
6. On the send SMS confirmation screen, click Yes. The SMS is sent to all the selected leads.

8.2 Manage Lists Page

1. Navigate to Leads>Manage Lists.
2. Alongside the list you want to send the SMS to, hover your cursor over . From the available options, under Messaging, click the messaging action label you’ve configured (e.g., Send Bulk Texts – CTM, etc.).
   • Alternatively, open a list and from the List Actions menu, click Messaging, and click the action label you’ve configured.
3. On the Send Bulk Text pop-up, enter the following details –
   • Campaign Details
     • Alongside Sending messages to…, check if the correct number field has been selected. You can select multiple number lead fields.
     • From the From dropdown, select the Sender Id.
     • Alongside Campaign Name, provide a relevant name for the SMS campaign.
     • Under Message Body, either
       • Click Select a Template, and from the list of available templates, select the one you want to use. Alternatively, to select a template, click .
         OR
       • Type out the message you want to send to your leads
     • Once you’re done, click Save & Next.
   • Custom Params
     • If there are custom variables available in the template, check if the relevant values are mapped to each variable.
     • To edit the value for a variable, click .
     • Once you’re done, click Save & Next.
   • Review and Send – On this tab, review if all the SMS details are correct.
4. Once all the details are verified, click Send.
5. On the send SMS confirmation screen, click Yes. The SMS is sent to all the selected leads.

9. SMS via Automation

To send SMS via Automations –

1. Navigate to Workflow>Automation.
2. Create a new automation, or edit an existing one.
3. After selecting the type of automation and the trigger, click the add  icon, click Messaging, and click the messaging action label you’ve configured (e.g., Send Automation Texts – CTM, etc.).
4. After entering the required details and selecting a template or typing the message content, click Send SMS.
   • To mail merge multiple LeadSquared phone fields, click the Add Another Number button. Filter by the entity type under which the phone field is present, and use the search box to find and add the field. In the example below, we’ve mail merged the Lead Owner phone field to the automation.
5. Publish the automation.

For more information, see How to Send SMS through Automation.

10. Message via Converse

When this permission is enabled, send SMSes to your leads via LeadSquared Converse.

1. Navigate to Leads>Manage Leads.
2. Alongside the lead you want to message, hover your cursor over . From the available options, click Converse.
3. To enable the Service Window, Select a Template.
4. From the list of approved templates, select a relevant template, and click .
5. Once the lead replies, you’ll be able to converse with them in real time.

11. View Reports

To view the reports and logs of all the SMSes sent through the CTM connector –

1. Navigate to Apps>Manage Reports – CTM.
2. You can sort the report by the following filters –
   • Usage Reports – The logs of the total one-to-one as well as bulk messages sent through the connector.
     • Templates – Filter the reports on the basis of the templates used when sending the messages.
     • Message Source/User Wise – Filter the reports on the basis of the message source (Automation, Bulk and One-to-one messages).
     • Select Date – Select the time interval for which you want to view the SMS logs data. You can select a maximum date range of up to 90-days in the past.
     • Cumulative – This will render the report as a pie chart.
     • Timeline – This will render the report as a bar graph.
     • For pie charts, to populate the details section, click any part of the chart.
     • For bar graphs, if you delete any element, the display of the graph gets updated accordingly.

• • Campaign Reports – The logs of all the bulk messages sent through the connector. This option will only show up if the connector supports bulk messaging.
    • Select Date – Select the time interval for which you want to view the SMS logs data. You can select a maximum date range of up to 90-days in the past.
    • Status – Filter by the campaign status (All, Success, Error, and Partial Error).
    • To view detailed logs of a campaign, click on the campaign. Alternatively, click the icon. On the Batch Details screen, you can perform the following actions –
      • To view the API details, under Batch ID (the List Id), click the entry.
      • To view the status of the messages triggered, under Triggered, alongside the Batch Id you want to view the details for, click the number.
    • Message Triggered – The total number of leads to whom the messages were triggered.
    • Sent – The total number of successful messages sent to the SMS provider.
    • Messages Billable – Every block of 160 characters in a SMS is considered as a one SMS. For e.g., if you send one SMS that contains 340 characters, it is considered as 3 messages (160+160+20) under the Messages Billable header.
    • Error – Any internal LeadSquared errors (e.g., server errors, etc.) that cause the Send SMS action to fail will get logged under the Errors column.
    • Invalid – The following scenarios when sending SMSes will get logged under the Invalid column –
      • Formatting issues with the lead’s phone numbers
      • Empty or missing lead phone numbers
      • Sending SMS outside the configured Business Hours
    • Opted Out – The total number of messages sent to leads who have opted out of receiving messages.

Alternatively, click on the Batch Id to download a report that contains the Lead Phone Number and Message content of the SMS sent to leads.

12. SMS Activities

You can track the SMS sent, from the Lead Details and Manage Activities pages. We automatically post SMS Sent activities in real-time.

12.1 Lead Details

To view more details, click the SMS Sent link for each activity.

12.2 Manage Activities

You can also view the list of leads with SMS activities. Be sure to select SMS Sent from the Activity Type drop.

You can use the Advanced Search feature to filter SMS based on different fields, such as campaigns, date-time fields, etc.

Any Questions?

Did you find this article helpful? Please let us know any feedback you may have in the comments section below. We’d love to hear from you and help you out!
